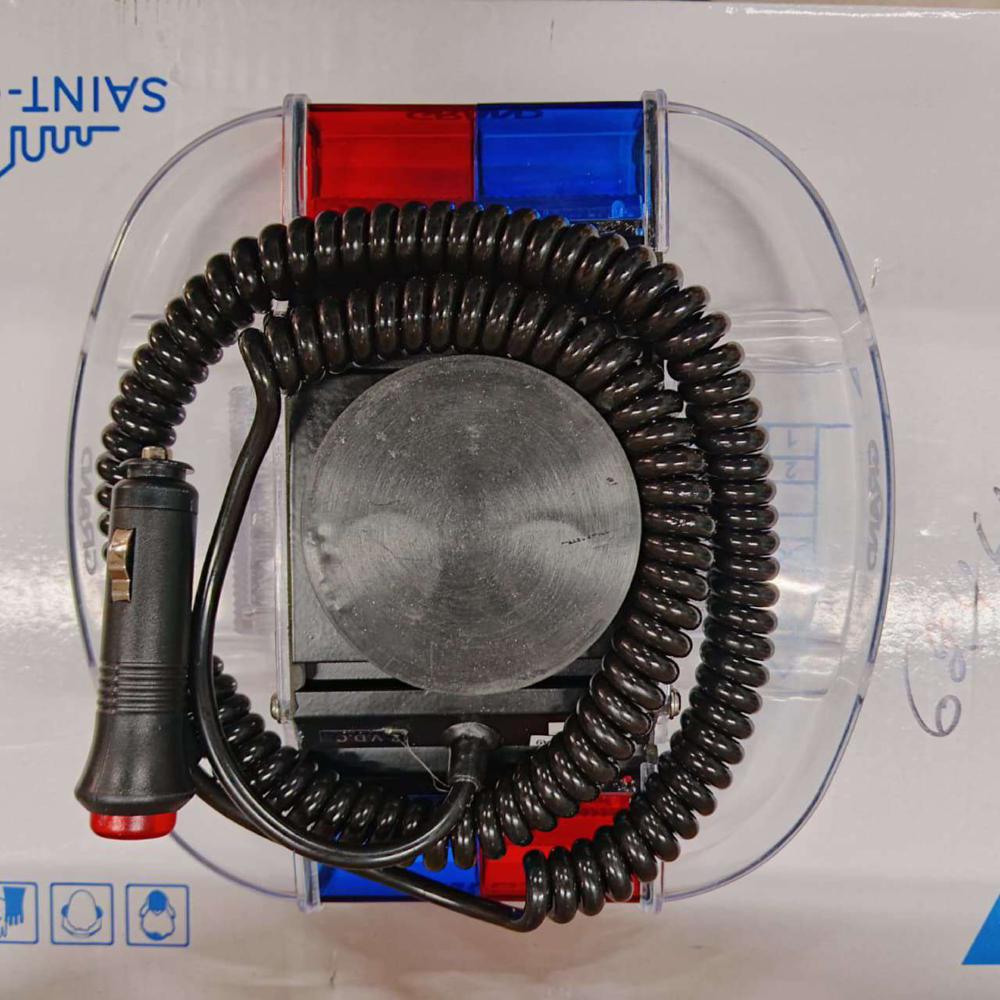

Grand Bar Light EF-One 8M RBW

Name: Grand Bar Light EF-One 8M RBW
Brand: M M Engineers & Agencies
Price: 7300.0 INR
Availability: InStock

Price 7300.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Grand Bar Light EF-One 8M RBW Specification

Product Type
Grand Bar Light

Material
Aluminum + PC

Color Temperature
RGBW (Red, Green, Blue, White)

Function
Color Changing, DMX Control

Input Voltage
AC 100-240V, 50/60Hz

Light Source
LED (RGBW)

Voltage
24V DC (Internal Circuit)

Base Type
Integrated/Fixed Mount

Charging Time
Not Applicable (Wired Power Supply)

Charging Voltage
Not Applicable (Wired Power Supply)

Dimension (L*W*H)
1000mm x 80mm x 110mm

Weight
Approx. 4.2 kg

Number of LEDs
96 LEDs

Application
Architectural, Facade, Landscape, Stage Lighting

IP Rating
IP65 (Outdoor/Waterproof)

Control Protocol
DMX512

Power Consumption
96W

Lifespan
> 50,000 Hours

Cable Entry
Waterproof Connector

Operating Temperature
-20C to 45C

Beam Angle
15/30/45/60 options

Installation Method
Surface/Bracket Mount

Grand Bar Light EF-One 8M RBW Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Grand Bar Light EF-One 8M RBW

(L: 222mm / W: 220mm / H: 50mm)

Base & Top: Aluminum Extruded

Dome: Polycarbonate

LED Modules: 3 Hi Power GEN III 1watts LED (1 Red / 1 Blue / 1 White)

Flashing: Alternate Red, Blue, White

Mounting: Permanent Mount with Magnet (Single Magnet)

Shape: Sleek Aerodynamic Rectangular, with Tapered Front Edges for Minimum Wind Drag

Versatile Lighting for Dynamic Environments

The Grand Bar Light EF-One 8M RBW excels in various environments, supporting architectural, landscape, facade, and stage lighting with its vivid RGBW color options and seamless DMX control. Its adaptable beam angle selection and high color rendering provide precision while easily integrating into creative light designs and outdoor displays.

Reliable Outdoor Performance

Featuring an IP65 waterproof rating, this light ensures optimal operation even in challenging weather. Its robust aluminum and PC build shield the internal components, while a wide operating temperature range allows the fixture to perform efficiently from cold to moderately hot climates. The waterproof cable connectors further streamline outdoor installations.

FAQ's of Grand Bar Light EF-One 8M RBW:

Q: How is the Grand Bar Light EF-One 8M RBW installed for different applications?

A: The fixture supports both surface and bracket mounting, allowing users to securely attach it to walls, ceilings, or other structures based on installation requirements. Its integrated/fixed mount base simplifies setup for architectural, facade, landscape, or stage uses.

Q: What are the control options available for color changing and lighting modes?

A: Color and lighting effects are managed via the DMX512 protocol, which enables precise remote programming and synchronization of multiple units. This allows customizable color mixing, dynamic scenes, and advanced lighting control suitable for professional events.

Q: When should I choose different beam angle options (15, 30, 45, 60)?

A: Select a narrower beam angle (15 or 30) for focused highlights, architectural accents, or longer-distance projection. Wider angles (45 or 60) are ideal for broader coverage, such as illuminating facades, landscapes, or large stage areas.

Q: Where can the Grand Bar Light EF-One 8M RBW be utilized most effectively?

A: This LED bar light is suited for outdoor and indoor settings requiring robust, colorful illumination-such as architectural facades, garden landscapes, entertainment stages, and building exteriors-thanks to its weatherproof build and vivid RGBW output.

Q: What benefits does the high CRI and RGBW color mixing offer?

A: A CRI above 80 ensures accurate color rendition, making illuminated surfaces appear vibrant and true-to-life. The RGBW color system enhances the spectrum, delivering pure whites alongside rich colors for more dynamic, attractive displays.

Q: How does the waterproof cable entry and IP65 rating protect the light?

A: The sealed, waterproof connector prevents moisture from entering the fixture, safeguarding electrical integrity and ensuring reliable performance in rain or humid environments. The IP65 rating further guarantees resilience against dust and water jets.
